Metal Three Layer PCB 260V 200A Inverter Arc Welder

    Buy cheap Metal Three Layer PCB 260V 200A Inverter Arc Welder from wholesalers

    Buy cheap Metal Three Layer PCB 260V 200A Inverter Arc Welder from wholesalers
    • Buy cheap Metal Three Layer PCB 260V 200A Inverter Arc Welder from wholesalers

    Metal Three Layer PCB 260V 200A Inverter Arc Welder

    Ask Lasest Price
    Brand Name : GENWELD
    Model Number : LW-G250
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 100000sets per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

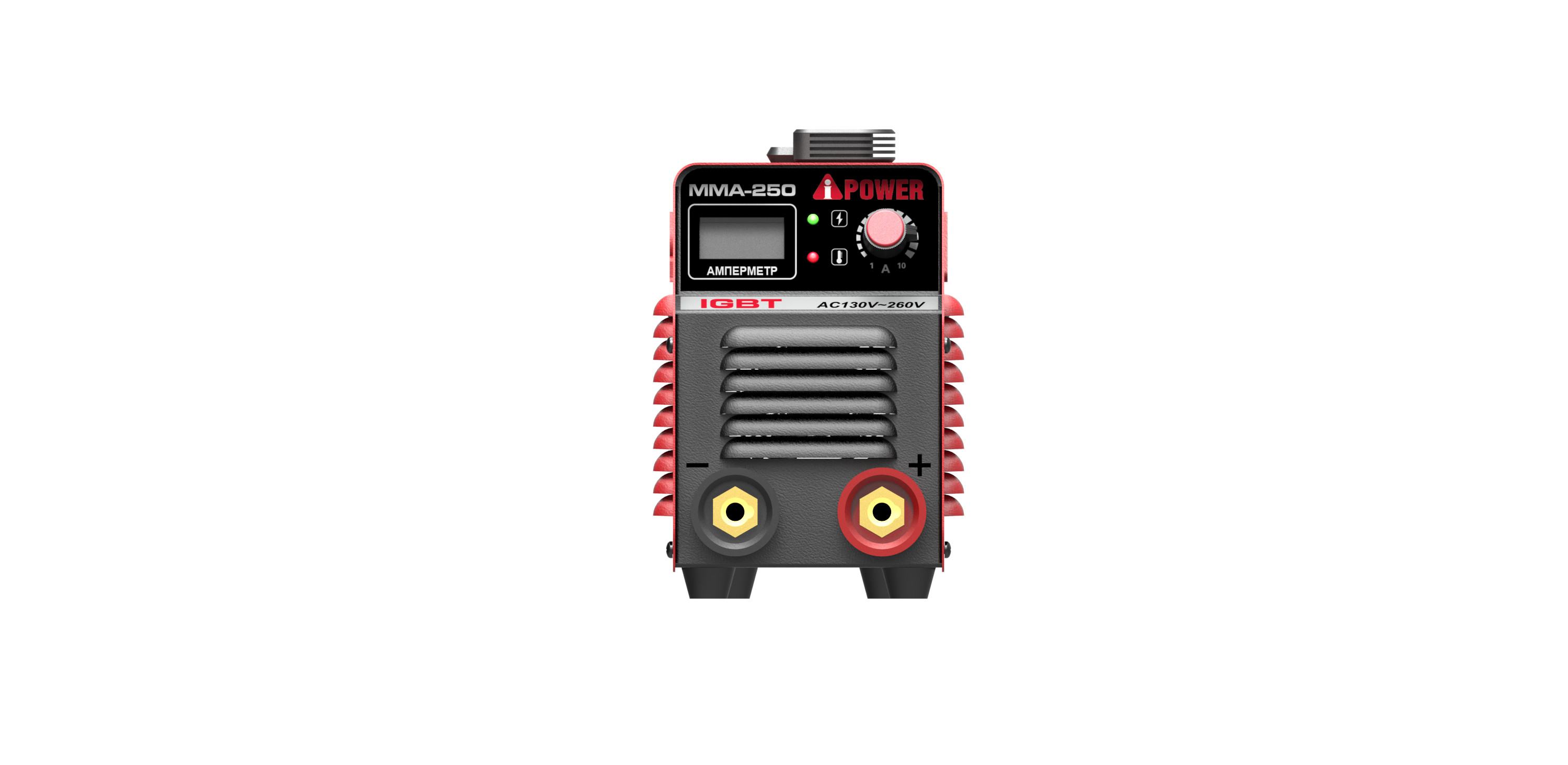

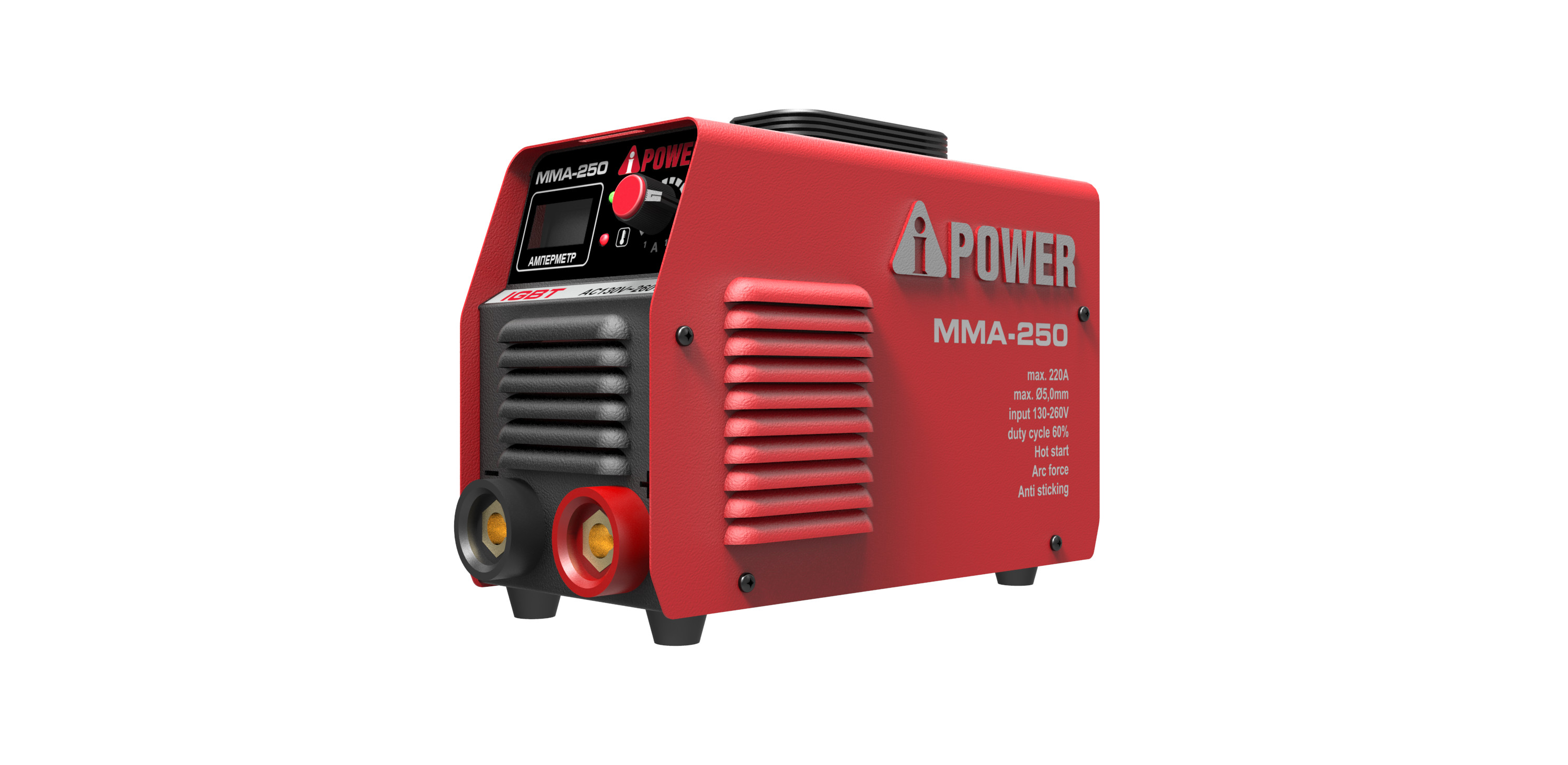

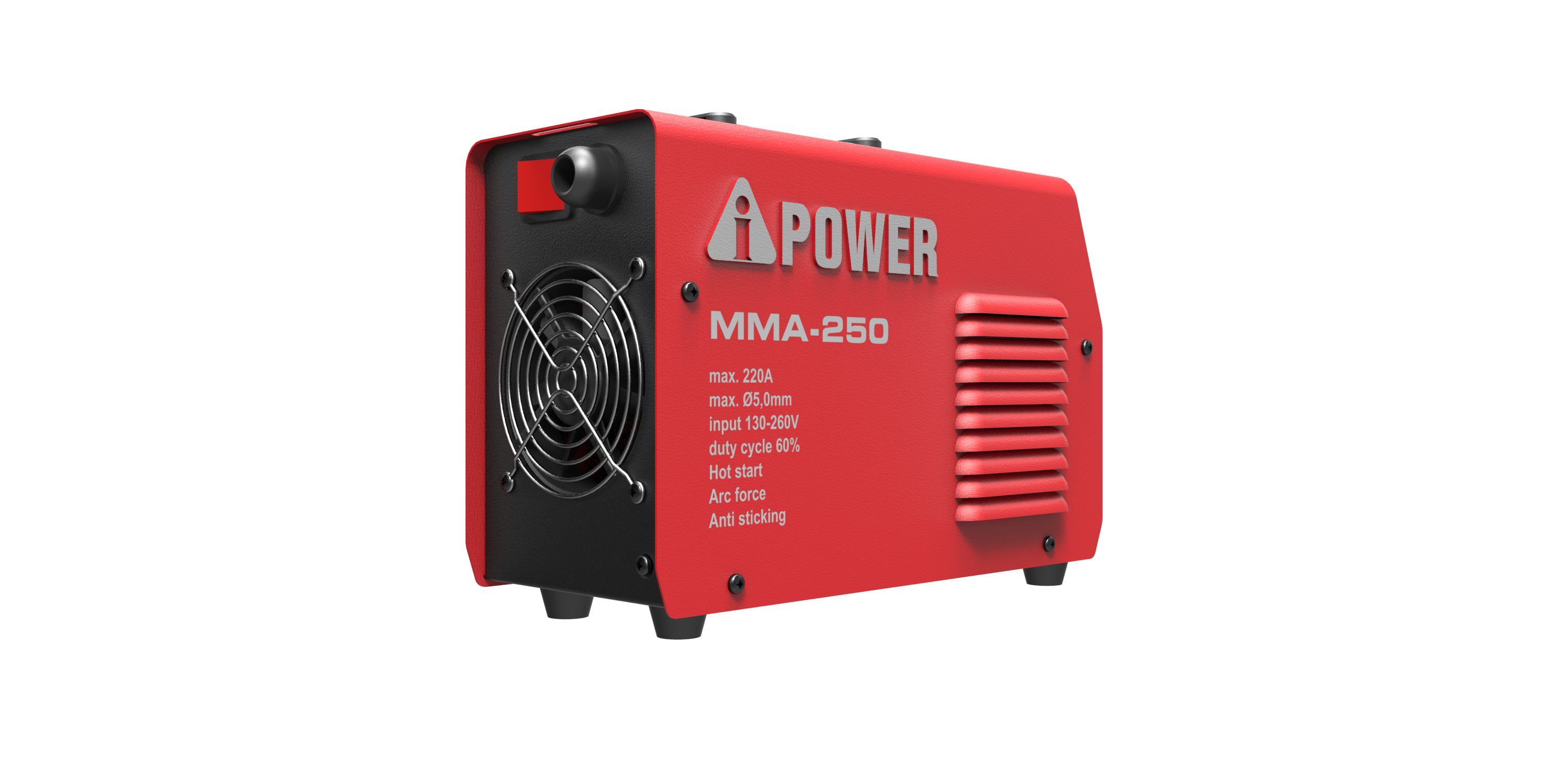

    Metal Three Layer PCB 260V 200A Inverter Arc Welder

    Aipower Series Inverter ARC Welders


    Features:


    • The front panel is equipped with overheat-protection and over-current protection indicators. The current display is used to show the current data accurately. The acceptable input voltage range 130 - 260V.


    • Three-layer PCB structure ensures the performance of the welding machine. Especially, the power supply board is more safe and stable.


    • Hi-speed running fan with more optimized heat sink channel design, which makes the heat dissipation effect is 30% higher than the same type of inverter welding machine.


    • Full bridge Inverter IGBT dual modules, large output voltage.


    • Large capacitors are more flexible and support to connect with generator use.


    • The whole series of products with hot arc starting, arc force, and anti-sticking functions. Easy to start the arc, low-pressure drop, comfortable operation.


    • New dust-proof design, nice appearance, more cost-effective, more portable, and lighter.


    Application field


    • It’s widely used for many kinds of metal welding, like carbon steel, stainless, iron and etc.


    ModelMMA-140MMA-160MMA-190MMA-220MMA-250
    Input voltage (V)230V230V230V230V230V
    Rated input power(KW)44.56.578
    Current range(A)20-130(A)20-150(A)25-170(A)30-190(A)30-220(A)
    Rated input current(A)2429333846
    Efficiency %8585858585
    Duty Cycle@40℃60%100%60%100%60%100%60%100%60%100%
    Insulation ClassFFFFFFFFFF
    NO load Voltage(V)6565656565
    Max. output current(A)130100150116170132190147220170
    Max.output Voltage(V)25.2242624.626.825.327.625.928.826.8
    Max. output power(W)3276240039002853.645563339.652443807.363364556
    Rated output current(A)130100150116170132190147220170
    Rated output Voltage(V)25.2242624.626.825.327.625.928.826.8
    Electrode(mm)2.5/3.22.5/3.22.5/3.22.5/3.22.5/3.2/4.02.5/3.2/4.02.5/3.2/4.02.5/3.2/4.02.5/3.2/4.02.5/3.2/4.0
    Protection ClassIP23IP23IP23IP23IP23
    Dimension(mm)285*120*210285*120*210285*120*210285*120*210375*150*310
    Net weight (kg)3.63.74.14.26.2
    Packing Dimension(mm)320*150*250320*150*240320*150*240320*150*240450*270*345
    Gross weight(kg)5.45.566.29.7
    Welding cable(m)1.81.81.81.81.8
    Power cable+Plug(m)1.51.51.51.51.5
    Ground cable(m)1.21.21.21.21.2

    Metal Three Layer PCB 260V 200A Inverter Arc WelderMetal Three Layer PCB 260V 200A Inverter Arc WelderMetal Three Layer PCB 260V 200A Inverter Arc WelderMetal Three Layer PCB 260V 200A Inverter Arc Welder

    Metal Three Layer PCB 260V 200A Inverter Arc Welder

    Metal Three Layer PCB 260V 200A Inverter Arc Welder
