Portable 200A Diesel Engine Driven Welder (MMA, TIG, Cellulose down welding )

Ask Lasest Price
Brand Name :	GENWELD
Model Number :	WDF200C
Certification :	CE
Price :	UAD1380-1450 per set
Supply Ability :	100 sets per month
Delivery Time :	30 work days

Add to Cart

Product Details
Company Profile

Portable 200A Diesel Engine Driven Welder (MMA, TIG, Cellulose down welding )

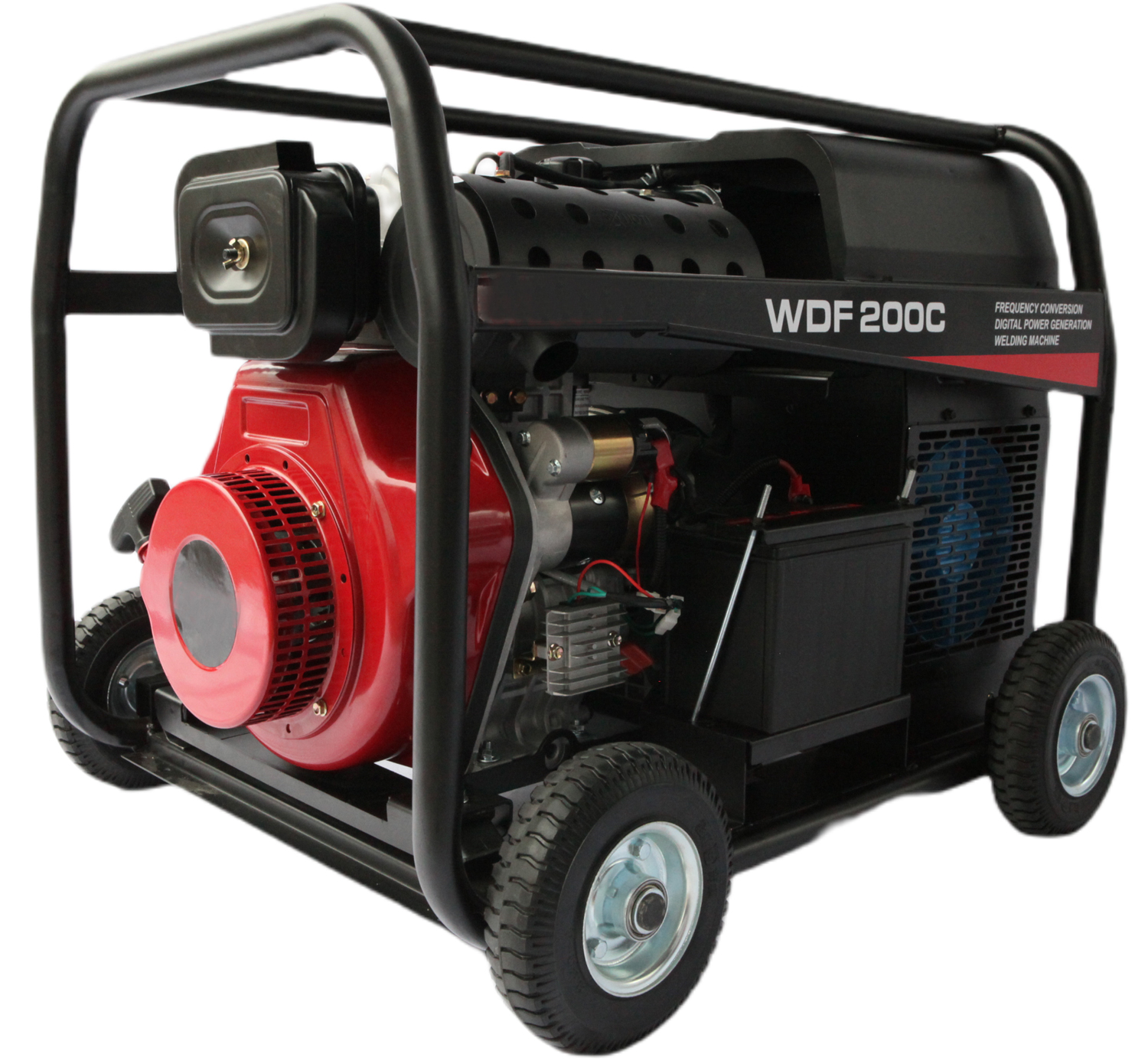

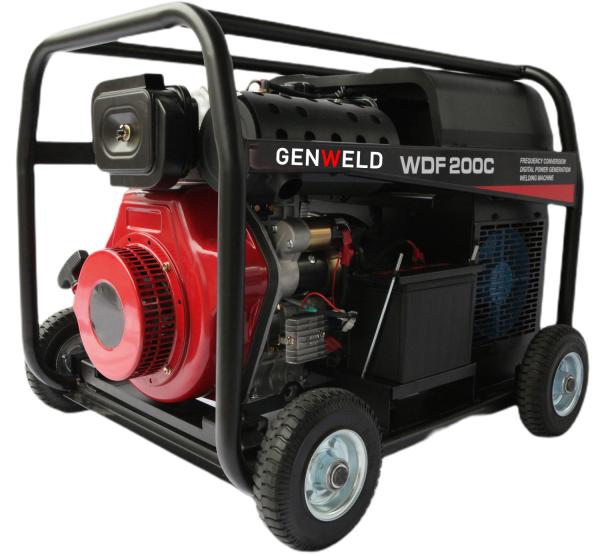

WDF200C 200A welding generator

Introduction

WDF200C is a industrial-purpose diesel engine driven welder, is a good combination of a digital generator and an industrial inverter welder in the true sense; As a generator, it can output 5kW pure sine wave AC power, THD is less than3% ; as a engine driven welder, it can output 200A welding current, perform MMA//TIG/ Cellulos down welding processes.

Product advantages: compact structure, small size, light weight, easy to move

High power generation and welding efficiency, the two functions can be carried out simultaneously or individually.

Digital inverter welding technology, stable welding current, easy arc ignition, good welding performance

Using medium frequency permanent magnet generator, high efficiency and energy saving

No high-frequency interference phenomenon, and the arc starting is enhanced to ensure that the welding current rises and falls slowly.

Application sites

Oil/gas/chemical pipeline repair,
Emergency repair of municipal pipe network
Welding of high-voltage power transmission line tower
Stainless steel, carbon steel welding
Mine maintenance
Shipyard maintenance
Farm/ranch maintenance
Emergency supply

Specification Sheet

Generating section	Phase	Single
	Rated frequency(Hz)	50/60
	Rated voltage(V)	230
	Rated power(kW)	5
	Power factor	1
	Rated current(A)	21.7
Welding section	Open circuit voltage(V)	DC82
	Welding process	MMA/CELLULOSE	TIG
	Welding current range(A)	50-200	50-200
	Rated voltage(V)	28	18
	Rated duty cycle(%)	60	60
	Electrode size(mm)	2.0-5.0
Engine	Brand	PUSHENG
	Model	WS188FB
	Type	Single cylinder/direct injection/naturally aspirated/air-cooled/four-stroke
	Bore x Stroke(mm)	88 x 75
	Displacement(L)	0.456
	Compression ratio	19:01
	Rated power	7.2kW/3600rpm
Machine Specification
Net weight		120kg
Dimension(mm)		820x570x600
Protection class		IP23
Insulation class		F
Fuel consumption		281g/kwh
Operation temperature		-25℃-40℃
Noise at rated load		85dB
