Brand Name : | GENWELD |
Model Number : | LWC-270/350/500/630 |
Certification : | CE |
Price : | |
Payment Terms : | T/T,, L/C |
Supply Ability : | 300 sets per month |
Delivery Time : | 20-30 days after received prepayment |

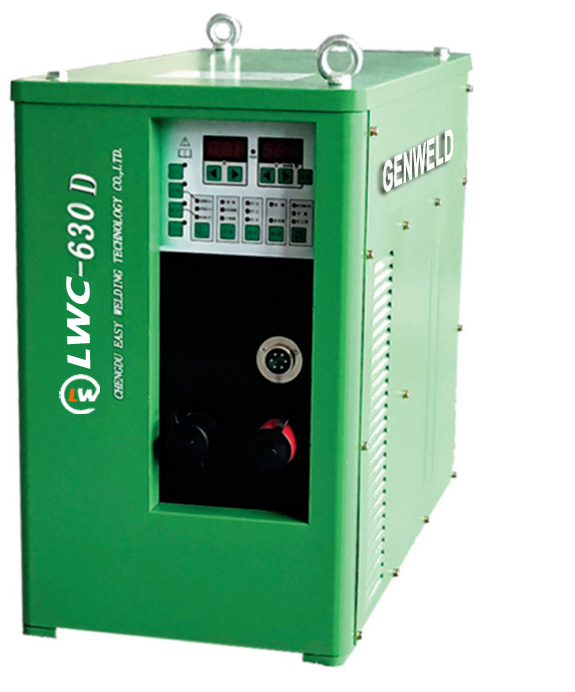

GENWELD LWC-630D
Gas shielded welder
Model: LWC-270/350/500/630
Product Characteristics
• Soft switching technology, the complete machine has high efficiency and low energy consumption;
• The function of current/voltage pre-display and digital display, and preset wire feed rate of gas shield welding;
• Short circuit transition waveform control, stable welding process, small spatter and calm weld pool;
• Operator can regulate non-polar arc characteristics from soft to hard, to meet different operating habits.
Introduction
his series of welding equipment focus on the invert technology,
realize CO2 gas shielded welding and manual welding, and have the
unique function of automatic melting ball of welding wire. Safe,
convenient, energy-saving, environmentally friendly, and
lightweight, it is the first choice for large and small and
medium-sized enterprise equipment procurement. Applicable to
industrial machinery maintenance, construction, etc.
Technical Parameters
LWC-270(IGBT) | LWC-350(IGBT) | LWC-500(IGBT) | LWC-630(IGBT) | |
Power Supply | 3Phase 380V±10%50Hz | |||
Rated Input Capacity (KVA) | 11. 2 | 14 | 25 | 37 |
Rated Duty Cycle(%) | 50 | 50 | 60 | 60 |
100% Load Current (A) | 191 | 248 | 38 7 | 487 |
Rated Welding Current (A) | 270 | 350 | 500 | 630 |
Output Current (A) | 40-350 | 40-350 | 60-500 | 60-630 |
Output Voltage (V) | 17-28 | 17-32 | 17-39 | 18-44 |
Wire Feed Speed(m/min) | 1.5-15 | 1.5-15 | 1. 5-15 | 1. 5-15 |
CO2 Gas Flow(L/min) | 10-15 | 10-15 | 15-20 | 15-20 |
Cooling Mode | Wind Cooling | |||
External Dimension (mm) | 600*310*560 | 620*330*580 | 620*330*580 | 640*350*600 |
Weight (kg) | 39 | 46 | 50 | 53 |
![]() |
