    4000W Industrial Cold Welding Machine

    Ask Lasest Price
    Brand Name : Lianwai
    Model Number : LW-J360
    Certification : CE
    Price : USD4250-4300 per set
    Supply Ability : 1000sets per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    4000W Industrial Cold Welding Machine

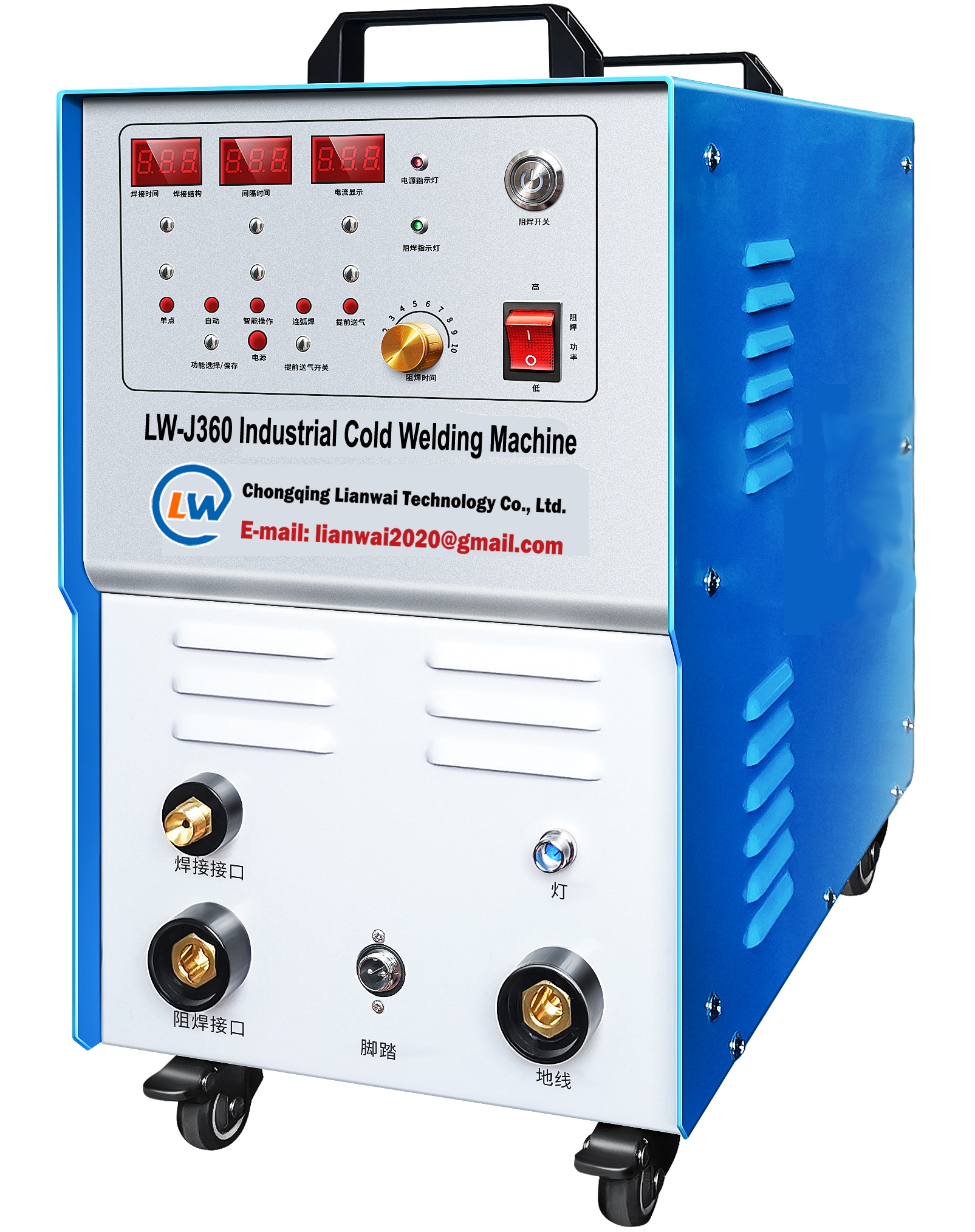

    LW-J360 Industrial Multifunctional Cold Welding Machine ( Intelligent precision welding machine)


    Working principle:
    Using capacitor energy storage, the electrical energy stored in the capacitor is instantly released between the tungsten electrode and the workpiece in the form of a pulsed arc. The arc is discharged in a high-frequency manner. The instantaneous and precise concentrated current makes the temperature after welding less than the temperature emitted by the workpiece. So as to achieve the cold welding effect.


    Application areas:
    Mold repair, welding of precision parts, shaft repair, sheet metal welding, cold welding deposition, matching automatic tooling welding.


    Low temperature repair:

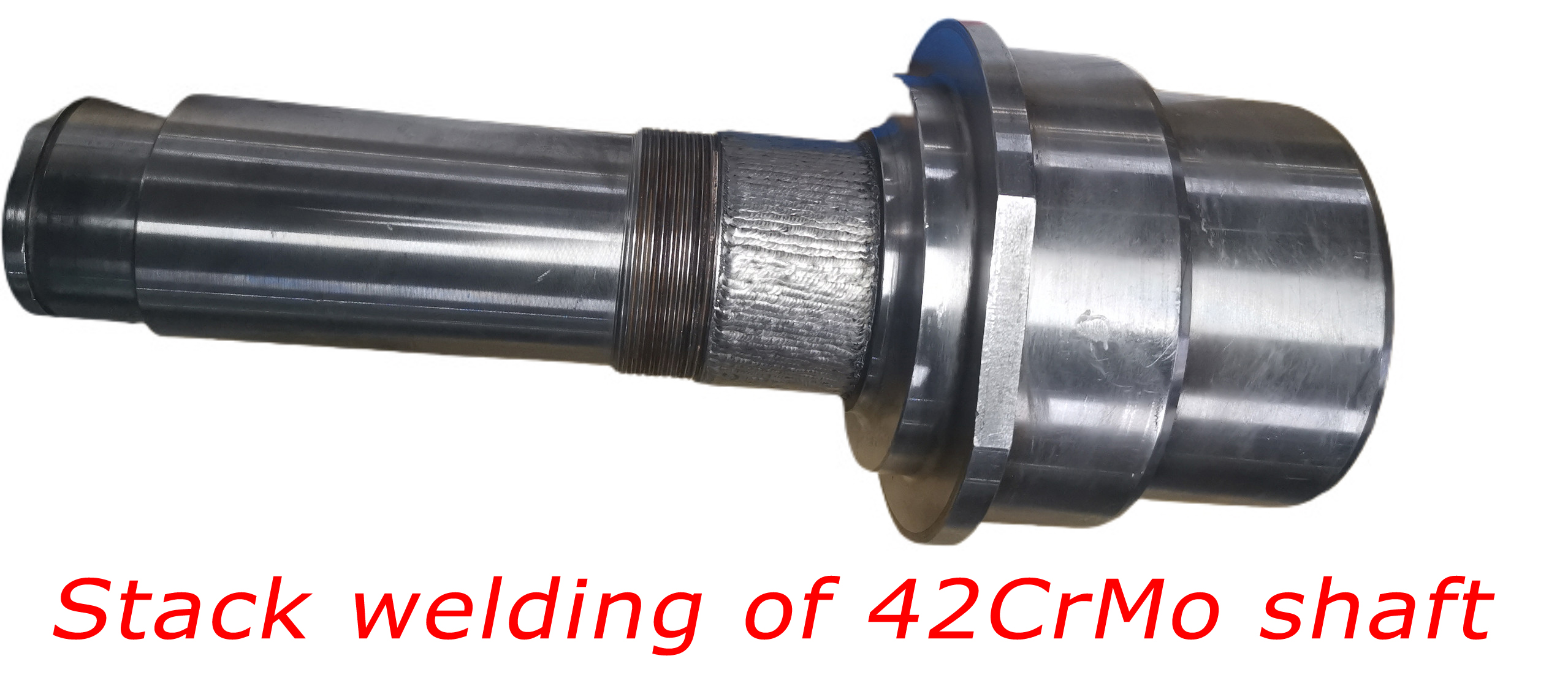

    Injection molds, die-casting molds, stamping dies, hot forging dies, shafts, gears, machine tool rails, hydraulic rods, cast iron parts, etc.


    Welding materials:

    High chromium cast iron, stainless steel castings, galvanized sheet, ductile iron, gray iron, alloy steel, aluminum alloy, thick, medium and thin plates.


    Performance characteristics
    1. Low temperature welding, precision repair welding, portable resistance welding,
    2. Multi-function can meet more demand from users,
    3. Star model, fatigue resistance, 0.1mm starting welding,
    4.32V/82000UF imported capacitors, high quality and reliable,
    5. Operators without welding experience can also weld beautiful products.


    Equipment advantages


    Welding

    1. Welding various metal sheets (thickness:0.2-5.0mm), with small deformation and beautiful welding seam,

    2. The welding seam is flat and smooth, deep welding penetration and high firmness,

    3. No spatter, no welding fumes, environmental protection and energy saving welding;

    4. Suitable for welding on various positions of parts. Not restricted by the table;

    5. The internal stress is small and will not cause bending and cracking of the base material;

    6. The minimum weld seam is 0.05mm and the maximum can reach 8.0mm.


    Repair welding

    1. Fast repairing speed, the fastest repairing speed can reach 100 mm3;

    2. The repair temperature is lower, no undercut, no deformation, no heat-affected zone. No heat treatment before and after welding repair;

    3. The welding repair accuracy is extremely high, and it is suitable for welding repairs of various defects;

    4. Metallurgical bonding, no falling off, no edge collapse, and can be matched with the strength of the base metal for welding repair.


    Specification sheet

    Device modelAXT-J360Product Size500mm×275mm×520mm
    Product weight35KGUsing electricSingle -phase 220V±20% -50HZ
    Power consumption10-4000WInstantaneous maximum output powerMore than 80KW
    Arc welding outputAutomatic single point, adjustableOutput currentOutput 1-200 adjustable
    Output timeOutput pulse time 1-999 ,adjustableResistance welding outputSingle point (adjustable welding wire 0.3-2.0mm)
    Argon delay time9SWelding wire specification range0.2mm-3.2mm
    Welding speed10-999 ,adjustableCooling methodAir cooling





    Quality 4000W Industrial Cold Welding Machine for sale
