4.5KW MMA Three Layer PCB 150A Inverter Arc Welder

Ask Lasest Price
Brand Name :	GENWELD
Model Number :	MMA-160
Certification :	CE
Price :	USD 58 Per Set
Payment Terms :	L/C, T/T
Supply Ability :	10000sets per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

4.5KW MMA Three Layer PCB 150A Inverter Arc Welder

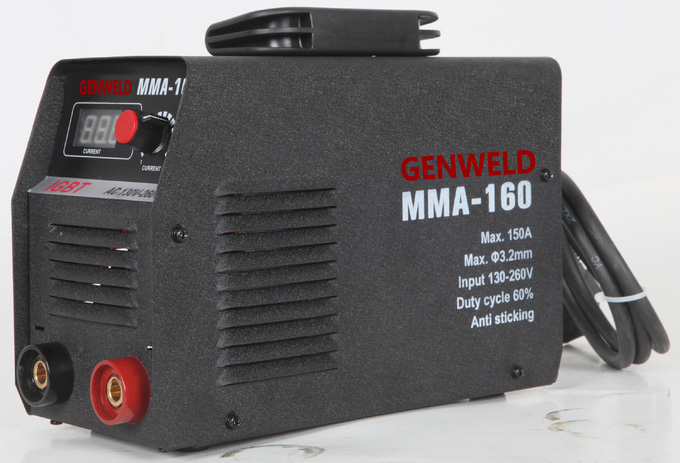

GENWELD MMA160 150A Portable Inverter ARC Welder

Features:

• The front panel is equipped with overheat-protection and over-current protection indicators. The current display is used to show the current data accurately. The acceptable input voltage range 130 - 260V.

• Three-layer PCB structure ensures the performance of the welding machine. Especially, the power supply board is more safe and stable.

• Hi-speed running fan with more optimized heat sink channel design, which makes the heat dissipation effect is 30% higher than the same type of inverter welding machine.

• Full bridge Inverter IGBT dual modules, large output voltage.

• Large capacitors are more flexible and support to connect with generator use.

• The whole series of products with hot arc starting, arc force, and anti-sticking functions. Easy to start the arc, low-pressure drop, comfortable operation.

• New dust-proof design, nice appearance, more cost-effective, more portable, and lighter.

Application field

• It’s widely used for many kinds of metal welding, like carbon steel, stainless, iron and etc.

Specification sheet

Model	MMA-160
Input voltage (V)	230V
Rated input power(KW)	4.5
Current range(A)	20-150(A)
Rated input current(A)	29
Efficiency %	85
Duty Cycle@40℃	60%	100%
Insulation Class	F	F
NO load Voltage(V)	65
Max. output current(A)	150	116
Max.output Voltage(V)	26	24.6
Max. output power(W)	3900	2853.6
Rated output current(A)	150	116
Rated output Voltage(V)	26	24.6
Electrode(mm)	2.5/3.2
Protection Class	IP23
Dimension(mm)	285120210
Net weight (kg)	3.7
Packing Dimension(mm)	320150240
Gross weight(kg)	5.5
Welding cable(m)	1.8
Power cable+Plug(m)	1.5
Ground cable(m)	1.2
