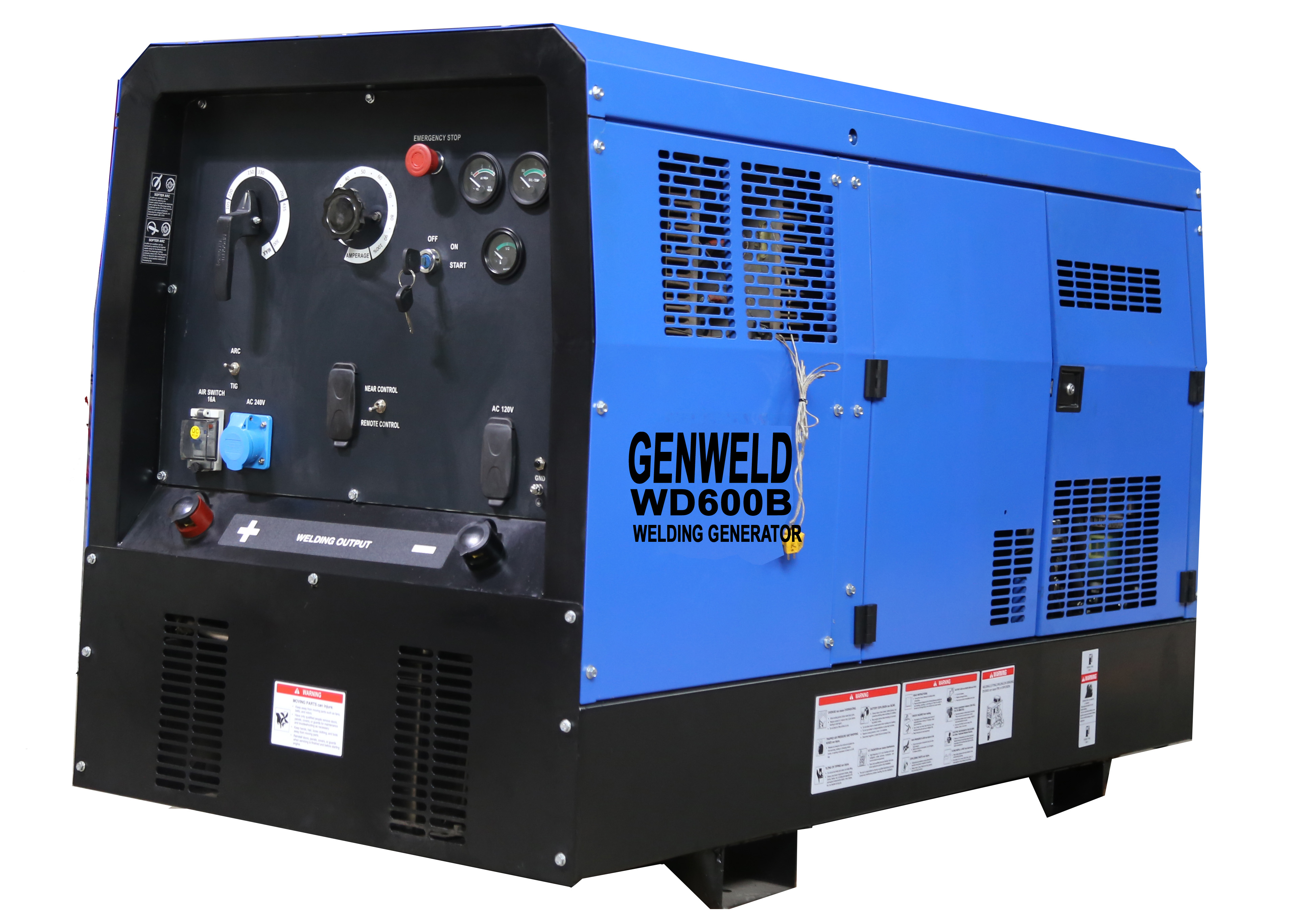

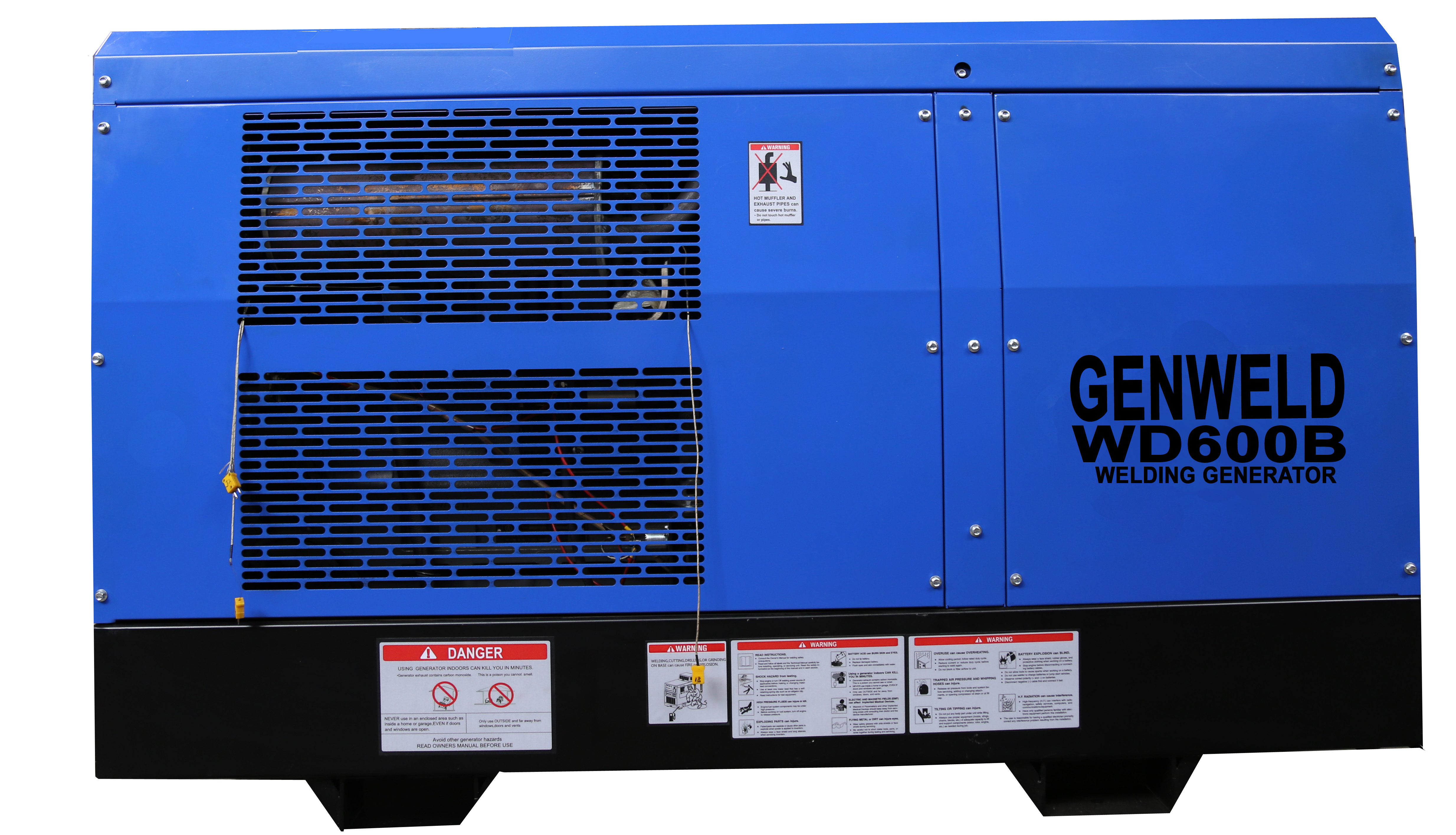

WD600B Duetz Air-cooling Welding Generator
Introduction:
i
WD600B Duetz Air-cooling Welding Generator is a special welding maintenance equipment for offshore oil and gas
rigs. WD600B adopts Duetz Air-cooling engine(Model:F4L912) diesel engine as power, powerful and steady, it can output AC 4kW(single-phase) power for running powered tools, meanwhile it can
welding oil/gas carbon steel pipeline and carry out arc-air gouging.
Characteristics on welding function:
1. It can steadily output 50-600A welding current.Welding duty
cycle: 60%/600A/44V, 100%/500A/40V, This machine can carry out
carbon arc-air gouging with carbon rod of 10mm or above.
2. The preset value and actual value of welding current / voltage
can be displayed in real time, and the preset and actual output
accurately match, which is convenient for welding specification
adjustment.
Characteristics in power generation:
1. WD600B can output 1 ~ 230V / 4kW AC power, and can drive water
pump, angle grinder and other common electric tools & lighting
equipment on field site.

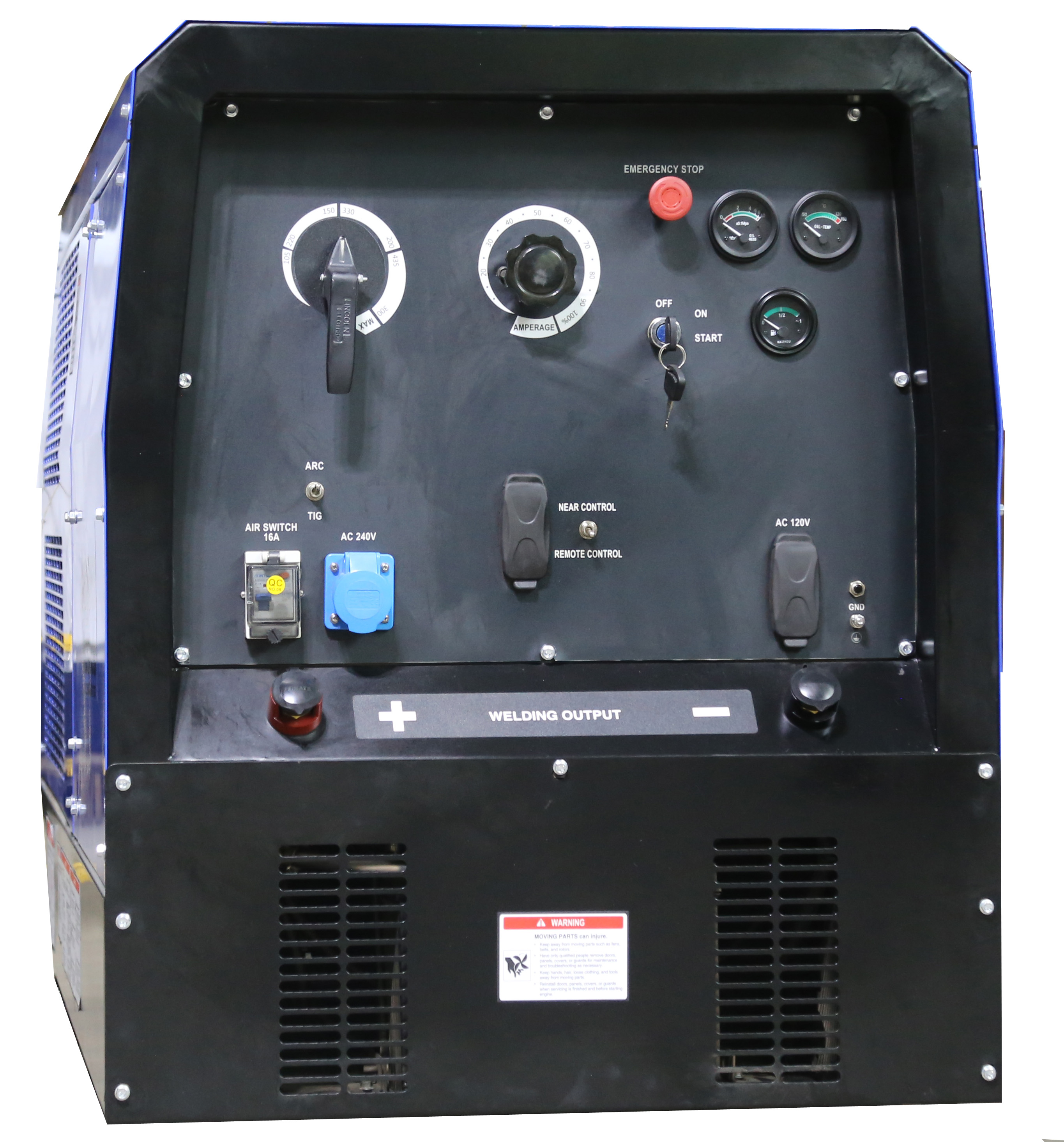

2. The water temperature, oil pressure, and oil quantity of the
diesel engine are displayed with separate pointer meter, and the
running status of the engine is clear at a glance.
3. WD600B adopts the design concept of single-side centralized
maintenance, which make maintenance faster &convenient.
4.WD600 has forklift holes at the bottom and a lifting hook on the
top,which facilitate transfer and transportation.
Application:
WD600B is mainly suitable for maintenance at offshore oil/gas rigs
. For example, field oil/gas pipeline welding construction,
municipal engineering rescue, field power engineering construction,
Gulf shipbuilding, Offshore oil drill maintenance, etc.
WD600 Dual Welding Generator Specifications:
| Generator parameters | Phase | Single phase |
| Rated frequency (HZ) | 60 |
| Rated voltage (V) | 120 | 240 |
| Rated power (KW) | 2 | 4 |
| Power factor | 1 |
| Rated current (A) | 17 | 17 |
| Welding parameters | No-load voltage (V) | DC90 |
| Welding current range (A) | 65-500 | 600 |
| Rated voltage (V) | 22.6~40 | 44 |
| Rated load duration (%) | 100 | 60 |
| Applicable electrode dia.(mm) | 2.5-10 |
| Power | Brand | BeiNei |
| Model | F4L912 |
| Types | Four-cylinder/in-line/naturally aspirated/air-cooled/four-stroke |
| Bore*Stroke (mm) | 100*120 |
| Displacement (cc) | 3770CC |
| Compression ratio | 17:01 |
| Power | Max.power:42KW/1800rpm；
Rated power:38KW/1800rpm |
| Protection level | IP23/F |
| Outline size | L*W*H(mm) | 1725×820×1060 |
