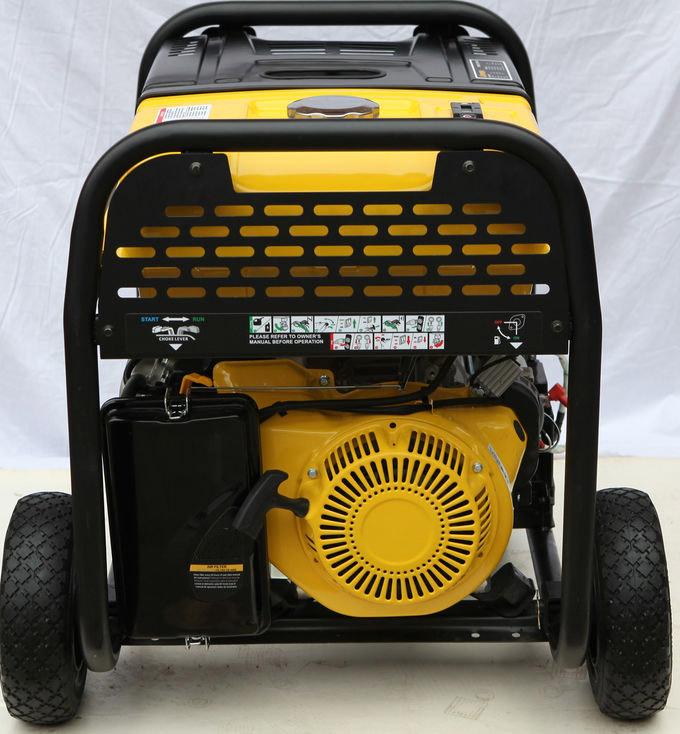

    GENWELD WSI-200 Portable 200A MMA Inverter Welder Powered by Either Self-engine or Utility Power Grid

    Ask Lasest Price
    Brand Name : GENWELD
    Model Number : WSI-200
    Certification : CE
    Price : USD630-650/set
    Payment Terms : T/T,, L/C
    Supply Ability : 1000 sets per month
    Delivery Time : 20-30 days after received prepayment
    • Product Details
    • Company Profile

    GENWELD WSI-200 Portable 200A MMA Inverter Welder Powered by Either Self-engine or Utility Power Grid

    GENWELD Portable 200A MMA Inverter Welder Powered by Either Self-engine or Utility Power Grid

    GENWELD WSI-200 Engine Driven Inverter Welder Specifications:

    ModelWSI-200
    Generating sectionRated OCV(V)230(AC)
    Rated power(kw)6.5
    Max.power(kw)7.0
    Rated current28.3
    Welding sectionDuty cycle(%)50%
    OCV(V)75(DC)
    RectifierIGBT
    Current range(A)DC 40-200A
    Loaded voltage(V)DC 21.6-28V
    Rated current/voltage(A/V)170A / 26.8V
    Engine sectionEngine modelSC420
    Max.power/Speed(RPM)9.2kw/3600rpm
    Displacement(CC)420
    Start methodRecoil/Electric
    Whole setTank capacity(L)18
    Protection/insulation levelIP23
    Outline size(mm)775*540*627
    Carton packing size780*545*632
    Net/gross weight(kg)98/103
    Standard accessoriesBattery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m
