Portable 230A Diesel Engine Driven Arc Welder

Ask Lasest Price
Brand Name :	Lianwai
Model Number :	LWG250C
Certification :	CE
Price :
Supply Ability :	1060 SETS
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

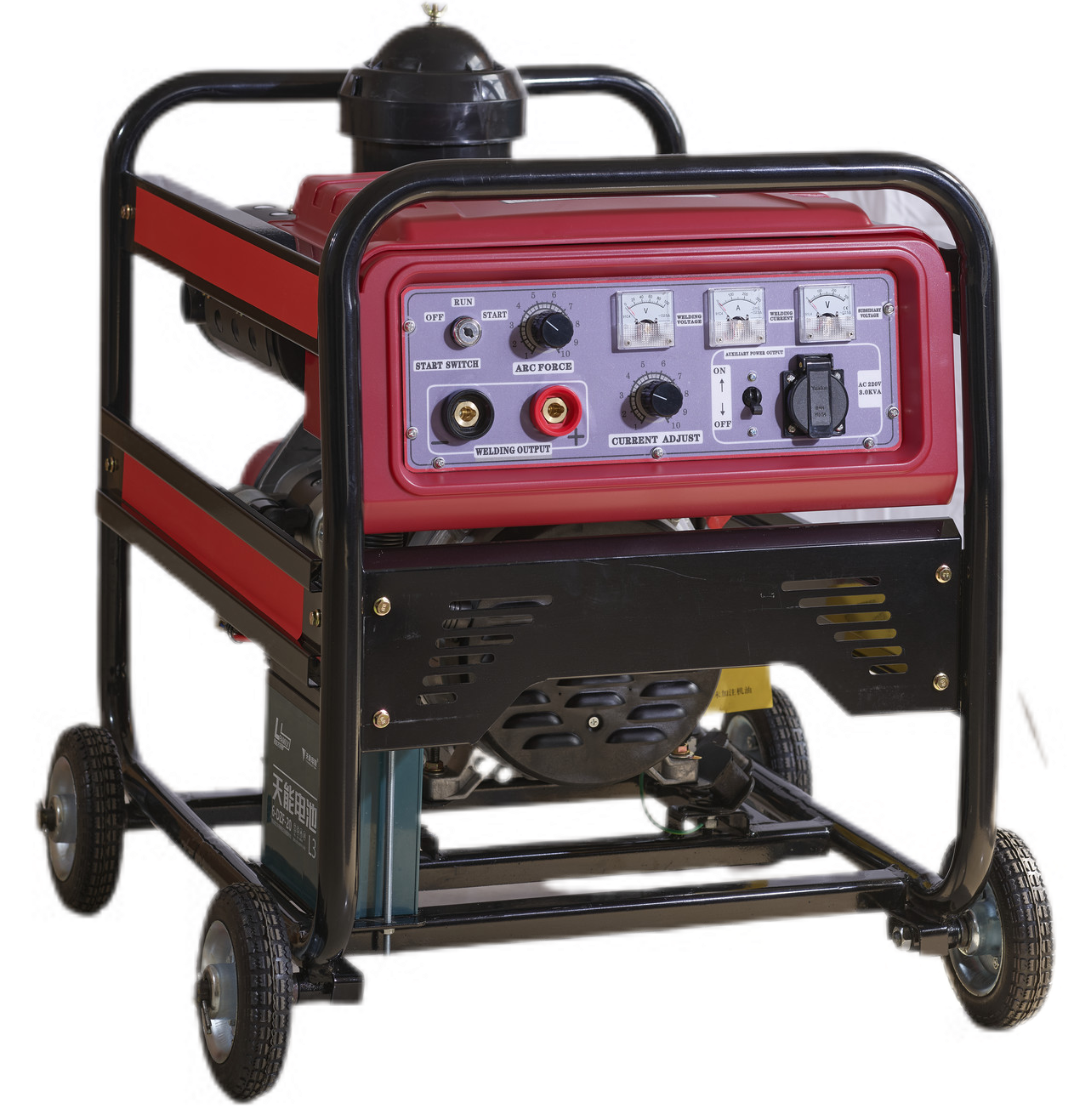

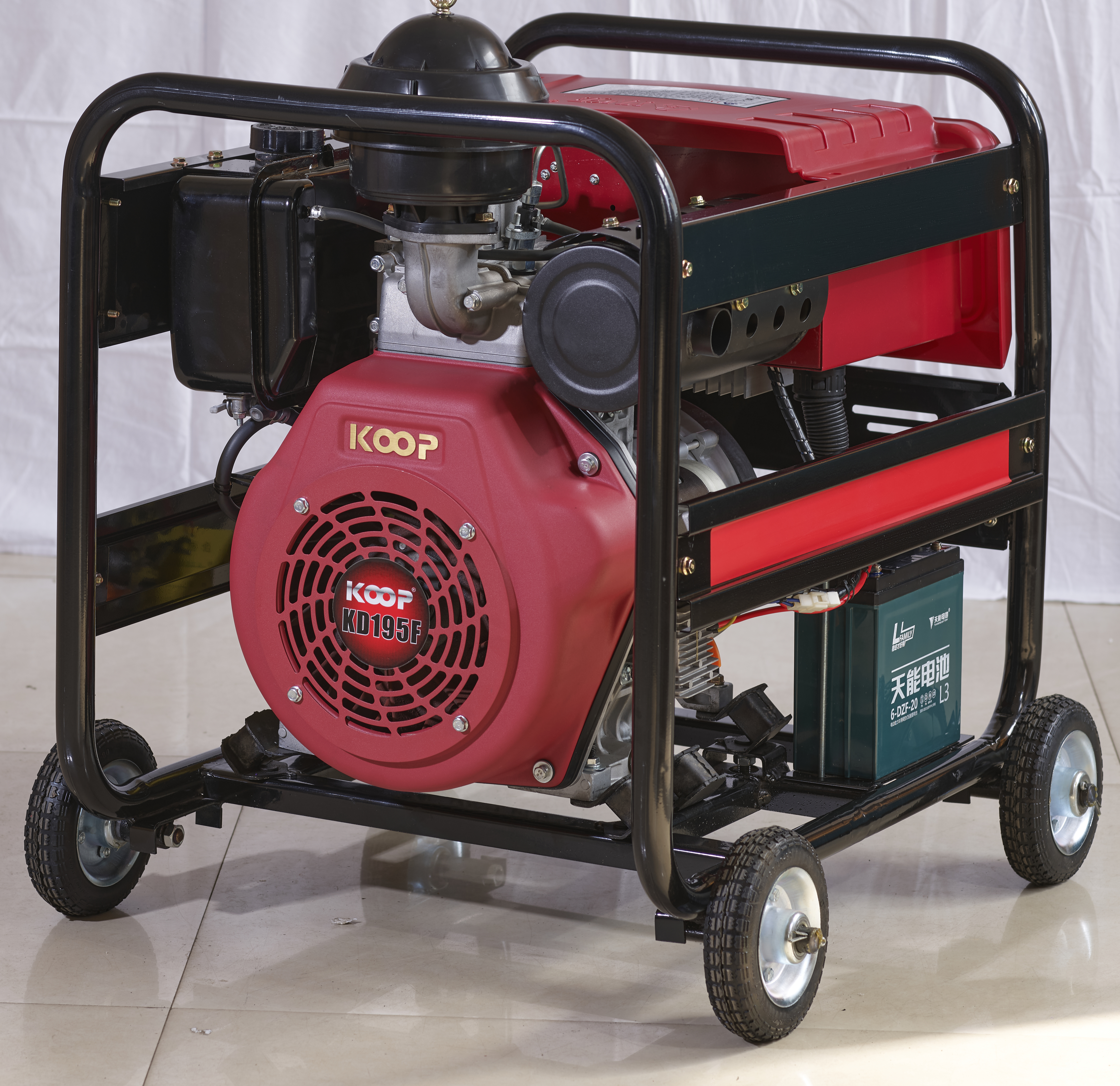

Portable 230A Diesel Engine Driven Arc Welder

LWG250C Rated 230A Diesel Welding Generator

Introduction

LWG250C is an industrial portable diesel welding generator, which can output Max 250A welding current and 220V/50Hz single-phase 3KVA auxiliary AC power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.

Characteristics

1. IF digital generation technology.
2. Excellent Arc welding characteristics, welding current and thrust current are steplessly adjustable.
3. Low-hydrogen basic electrode has good arc performance
4. Beside MMA welding, it also has TIG function (scratch arc ignition type).

Application

1. Oil/gas/water pipeline welding, steel structure welding
2. Maintenance and repair of highway guardrails and power facilities,
3. Repair of fences and agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Emergent repair welding & power supply

Main specification sheet

Product Model		LWG250C
Welding	No-load voltage	65-70
	Welding current range	40-250A
	Duty cycle	60%/230A/29.2V
	Electrode diameter	￠2.5-￠5.0mm
Generating	Rated generating output power	AC 3kW / 220V / 50Hz / 60Hz
Engine	Brand	KOPO
	Model	KD195F
	Engine power(kW)	9.2
	Max rpm	3600
	Starting	E-start
	Lubricant alarm system	Yes
	Emission(cc)	530
	Fuel capacity(L)	5.5
	Lubricant capacity(L)	1.65
	Fuel consumption(g/k.h)	300
Whole set	Insulation Class	H level 180℃
	Net weight(kg)	95
	Overall Dimensions(L×W×H)	740x560x650mm
