Portable 200A MMA/TIG Welding Generator

Ask Lasest Price
Brand Name :	Lianwai
Model Number :	LWG210C
Certification :	CE
Price :
Supply Ability :	1000 SETS
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

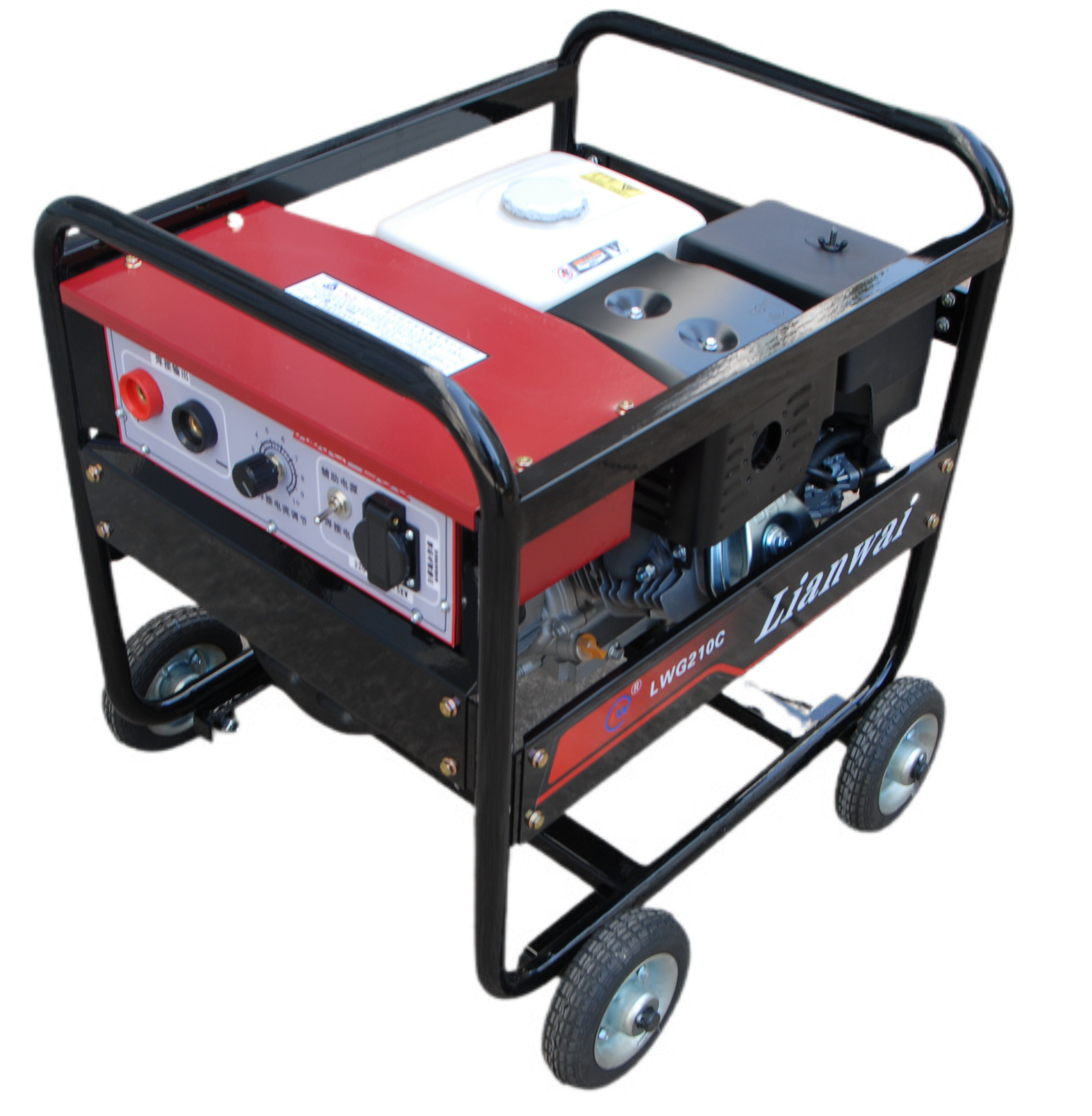

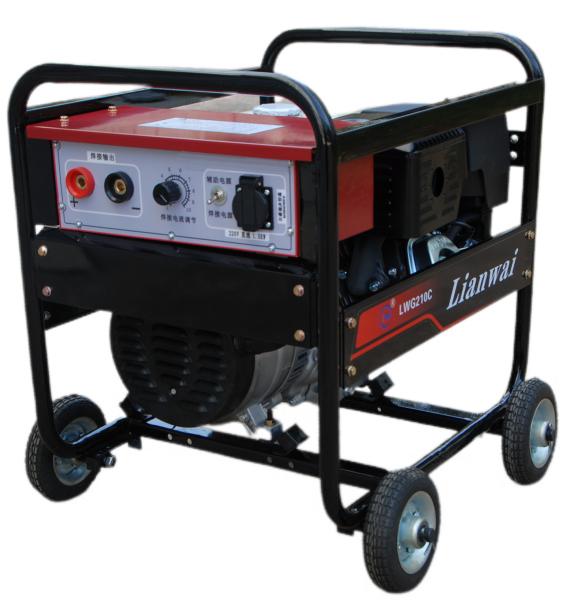

Portable 200A MMA/TIG Welding Generator

LWG210C 200A Gasoline Welding Generator

Introduction

LWG210C is a economic engine driven welder, which can output 200A welding current or DC 1.5kW 230V auxiliary power. Due to its small size, light weight, convenient movement, and self-generation, this machine can meet general welding demand (MMA), it can also be used as emergency lighting equipment for household emergency and some small service places.

Characteristics

1. Adopt MF generating technolog,the arc is stable and the performance is safe and reliable.

2. Can continuous weld Ȼ2.5--Ȼ4.0 electrodes, and output DC 1.5kW/220V auxiliary power for running grinding & lighting.

3. Compact structure,small size for transfer, only 65kg.

Application

1. Maintenance and repair of highway guardrails and power facilities,
3. Maintenance of fences & agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. House emergency power supply.

Main specification sheet

Product Model		LWG210C
Welding Generator	Rated generator output power(Kw)	5.6
	No-load voltage(V0)	65-70
	Max welding current(Im)	200
	Rated welding current(If)	190
	Rated welding voltage(Vf)	27.6
	Duty cycle(x)	60%
Engine	Brand	LW
	Engine power	15.0Hp
	Max rpm	3600
	Starting	Recoil
	Lubricant alarm system	Yes
	Emission(cc)	420cc
	Fuel capacity(L)	6.2
	Lubricant capacity(L)	1.1
	Fuel consumption(g/kw.h)	370
Overall unit	Wire Diameter Capacity(d)	￠2.5-￠4.0mm
	Rated auxiliary Power output(Kw)	DC 220v 1.5Kw
	Insulation Class	F level 155℃
	Net weight(kg)	65Kg
	Overall Dimensions(L×W×H)	600500550mm
