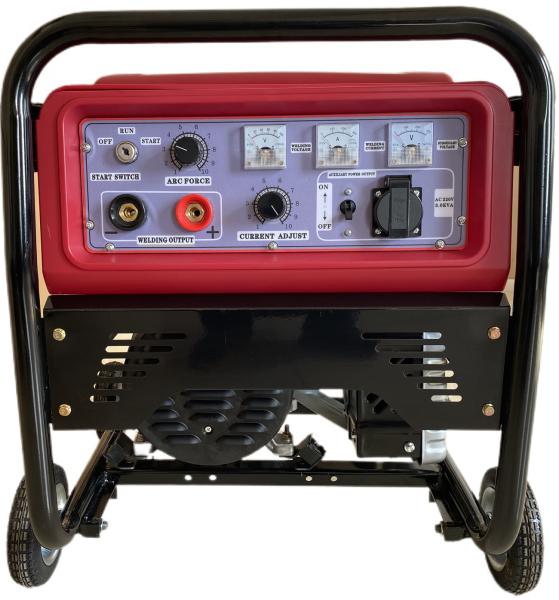

LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode

    Buy cheap LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode from wholesalers

    Buy cheap LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode from wholesalers
    • Buy cheap LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode from wholesalers

    LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode

    Ask Lasest Price
    Brand Name : Lianwai
    Model Number : LWG250
    Certification : CE
    Price :
    Supply Ability : 1060 SETS
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    LWG250 MMA 230A Gasoline Welding Generator With 5.0mm Electrode


    LWG250 230A Gasoline Welding Generator


    Introduction

    LWG250C is an industrial portable gasoline welding generator, which can output 230A welding current and 220V/50Hz single-phase 3KVA auxiliary AC power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.

    Characteristics

    1. IF power generation technology,
    2. Welding current and thrust current are steplessly adjustable.
    4. Beside MMA welding, it also has TIG function (scratch arc ignition type).
    5.Auxiliary output: Single-phase, AC 3kW/220V/50Hz


    Application

    1. Maintenance of oil/gas/water pipeline welding,
    2. Maintenance and repair of highway guardrails and power facilities,
    3. Repair of fences and agricultural equipment in pastures and farms,
    4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
    5. Welding of stainless steel and carbon steel materials
    6. Emergency power supply


    Main specification sheet


    Product ModelLWG250
    WeldingNo-load voltage(V0)65-70
    Current range(A)40-230
    Duty cycle(x)60%/220A/28.8V
    Electrode diameter2.5-5.0mm
    GeneratingRated output single-phase 3kW/220V/50Hz
    EngineBrandSenci
    Engine power9.8kW/3600rpm
    StartingRecoil
    Lubricant alarm systemYes
    Emission(cc)460
    Fuel capacity(L)15
    Lubricant capacity(L)1.1
    Fuel consumption(g/k.h)400
    Whole setInsulation ClassH level 180
    Net weight(kg)72Kg
    Overall Dimensions(L×W×H)

    710*560*650mm
