Portable Oil Gas Cellulose Pipeline Welding Generator 210A

Ask Lasest Price
Brand Name :	Lianwai
Model Number :	LWG210SX
Certification :	CE
Price :
Supply Ability :	1000 SETS
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

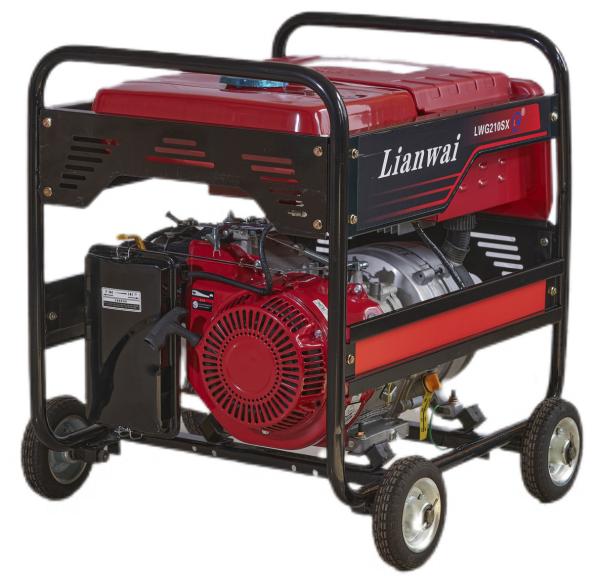

Portable Oil Gas Cellulose Pipeline Welding Generator 210A

LWG210SX 200A Oil / Gas Pipeline Cellulose Welding Generator

Introduction

LWG210SX is an industrial portable welding generator, which can output 230A welding current and 220V/50Hz single-phase 3KVA auxiliary AC power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.

Characteristics

1. Adopt MF generation technology,

2. Welding current, stable arc current, thrust current adopt digital control technology,ignition current is automatically set.

3. Suitable for cellulose downward welding and low hydrogen basic electrode welding.

4. Auxiliary output: Single-phase, AC 3kW/220V/50Hz

Application

1. Oil/gas/water pipeline welding,
2. Maintenance and repair of highway guardrails and power facilities,
3. Maintenance of fences and agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. Emergency power supply.

Main specification sheet

Product Model		LWG210SX
Welding	No-load voltage	90
	Current range	40-200A
	Duty cycle	60%/190A/28V
	Wire Diameter Capacity	￠2.5-￠4.0mm
Generating	Rated output AC single-phase/220V /3Kw, 50Hz
Engine	Brand	Senci
	Engine power	15Hp
	Max speed	3600 rpm
	Starting	E-start / Recoil
	Lubricant alarm system	Yes
	Emission(cc)	460
	Fuel capacity(L)	15
	Lubricant capacity(L)	1.1
	Insulation Class	H level 180℃
	Net weight(kg)	72Kg
	Overall Dimensions(L×W×H)	710560650mm
Whole set	Insulation Class	H level 180℃
	Net weight(kg)	72Kg
	Overall Dimensions(L×W×H)	710560650mm
