IGBT Air Cooling Cold Welding Machine 2.0mm Sheet Precision Welding Machine

Ask Lasest Price
Brand Name :	Lianwai
Model Number :	LW-J100
Certification :	CE
Price :
Supply Ability :	1000sets per month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

IGBT Air Cooling Cold Welding Machine 2.0mm Sheet Precision Welding Machine

LW-J100 0.1-2.0mm Metal Sheet Intelligent Precision Non-deformation Cold Welding Machine

Introduction:
LW-J100 metal sheet cold welding machine is a new type of cold welding machine developed for the metal sheet industry for welding metal plates in 0.12-2.0mm thickness. This machine is small in size and high in efficiency. It can be quickly used by those who have no experience in welding machine operation. The solder joints are silver-white, and there is no need for polishing in the later stage.

Specification sheet

Device model	LW-J100	Product Size(mm)	220420275
Product weight	20kg	Control method	CPU
Input voltage	220V	Argon delay time(S)	10
Minimum current	2A	Welding thickness(mm)	0.12-2.0
Input power	1000W	Function selection	1-4 gear
Cooling method	Air-cooling	Welding gun method	Manual/pedal
Internal power supply	IGBT	Protection level	IP40

Performance characteristics

Welding temperature---low	The welding temperature is so low that it can be touched by hand. Because the welded plates are not deformed or undercut.
Welding thickness---wide	The thickness of the plate can be welded to 0.12-2.0mm.
Welding materials---more	Weldable profiles: stainless steel, thin iron, copper, aluminum.

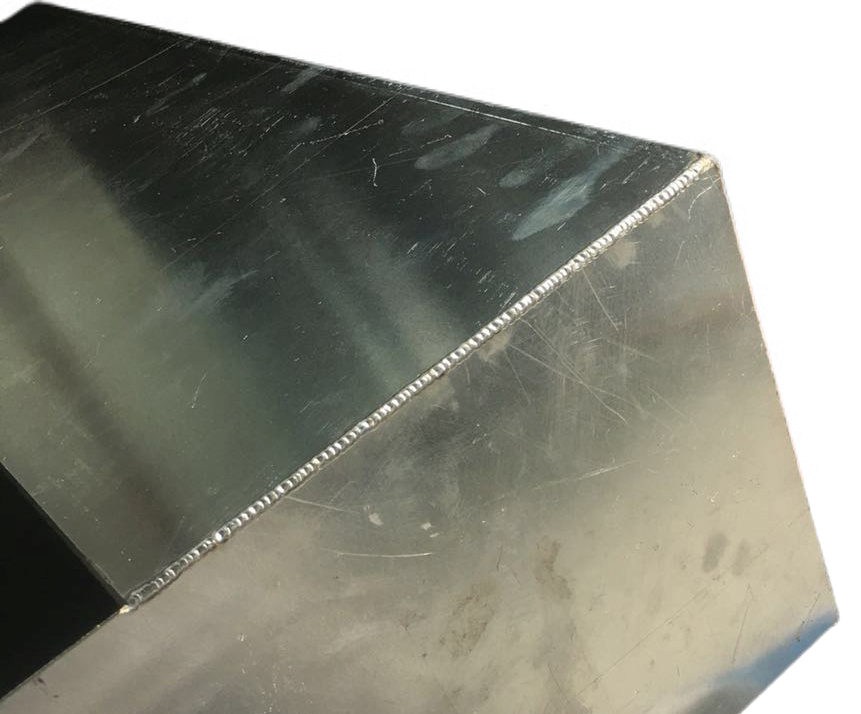

Weld seam---smooth and beautiful	The welding seam is smooth and presents silvery white fish scales, no undercut, no deformation, the minimum width of the welding seam is about 1mm, and no heat affected zone.
Cost of use---low	The argon used is ordinary argon, and the amount of argon used is one-fifth of the argon arc welding.
Labor cost---saving	Anyone with or without welding machine operating experience can get started quickly. The operation is simple and convenient, and no professional welder is required.
Welding penetration --- deep	The penetration depth after welding is several times higher than that of laser welding and reaches or exceeds the penetration depth of argon welding.
CPU chip control and adjustment---convenient	Using CPU control, German original, welding temperature control is more convenient, for example, 1 mm plate can be welded on one side and formed on two sides, or the front side can be welded on the back side without color penetration.

Comparison table of cold welding, laser welding and argon arc welding

Product comparison, machine name	LW-J100 Thin Plate Cold Welding Machine	Laser welding	Traditional argon arc welding
Welding repair temperature	low	Low	High
Welding thickness	0.12-2.00mm	0.1-0.8mm	The minimum is 0.6mm, and welding is not possible under 0.5mm.
Operator technical requirements	You can get started quickly with or without experience.	1 month study period	Professional welder
Features	The output energy is accurate, no undercut, no deformation.	The weldment is more restricted by the welding machine fixture and the operating table	The output energy is large, and the weldment is deformed and discolored seriously
Weld scars, welds	The weld seam is smooth, with small scars, no need to be polished, and silvery white.	The welding seam is smooth, the scar is small, and it does not need to be polished, and it is silvery white.	The weld seam is uneven, and the scar needs to be polished, dark brown
Argon consumption	One-fifth of the amount of argon used in argon arc welding	Requires pure argon	Large amount of argon
